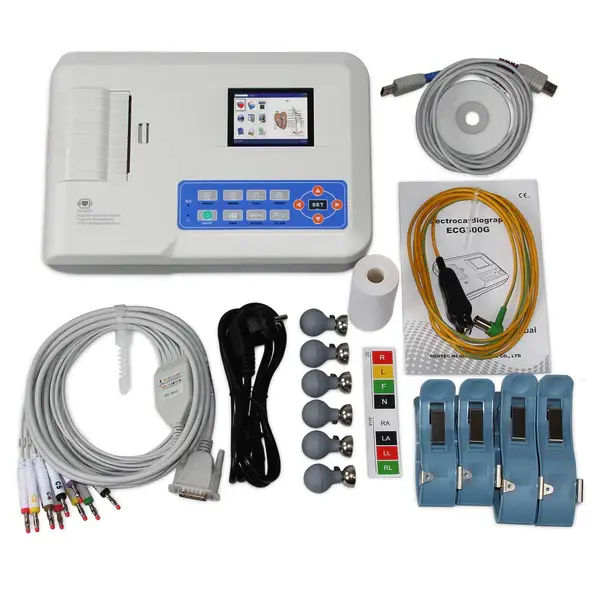

CONTEC ECG300G Electrocardiograph, Digital 3 Channel ECG Machine

• Collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
• Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
• Multiple printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.
• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
• Built-in memory stores up to 1000 cases, convenient for case review and statistic.
• Multi-language Support

• Input mode: floating and defibrillation protection
• Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
• CMRR: >60dB, >100dB(add filter)
• Time constant:≥ 3.2s
• Patient leak current: <10µA
• Calibration voltage: 1mV
• Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
• Noise level: <15µVp-p
• Input circuit current: ≤50nA
• Input impedance: ≥50MΩ
• Sampling accuracy: 12-bit
• Safety classification: class I, type CF and defibrillation-proof applied part
• Recording mode: thermal printing system
• Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
• Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
• Manual record: set record according to record format, manually switching leads.
• Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• Paper size: 80mm(W)×20m(L)
• Sampling frequency: 1000Hz
• EMG interference filter: 25Hz/35Hz (-3dB)
• Power frequency filter: AC 50Hz/60Hz(-20dB)
• Paper speed:
• Auto: 25, 50mm/s, ±5%
• Rhythm: 25, 50mm/s, ±5%
• Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
• Power supply:
• AC: 100V~240V(50/60Hz)
• DC: 7.4V/3500mAh rechargeable lithium battery
• Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
• Waterproof degree: IPX0
• Working mode: continuous working

A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual
